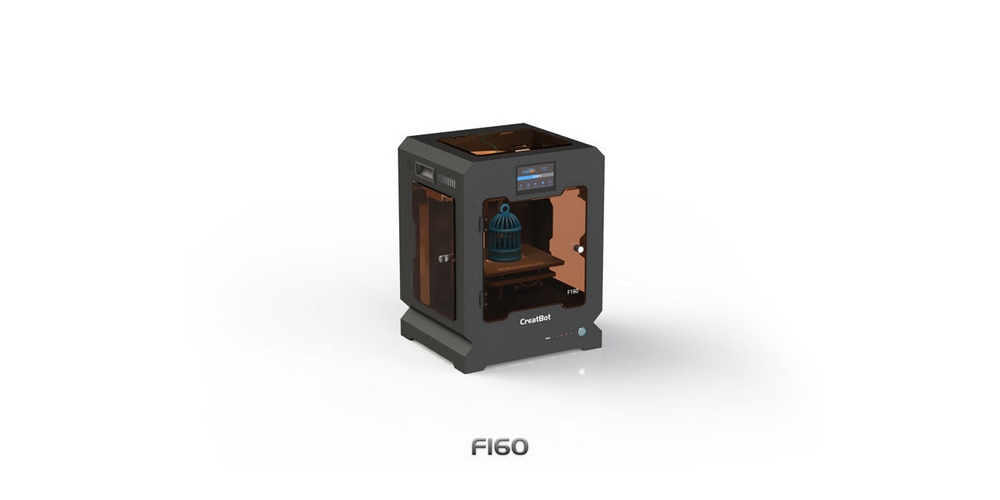

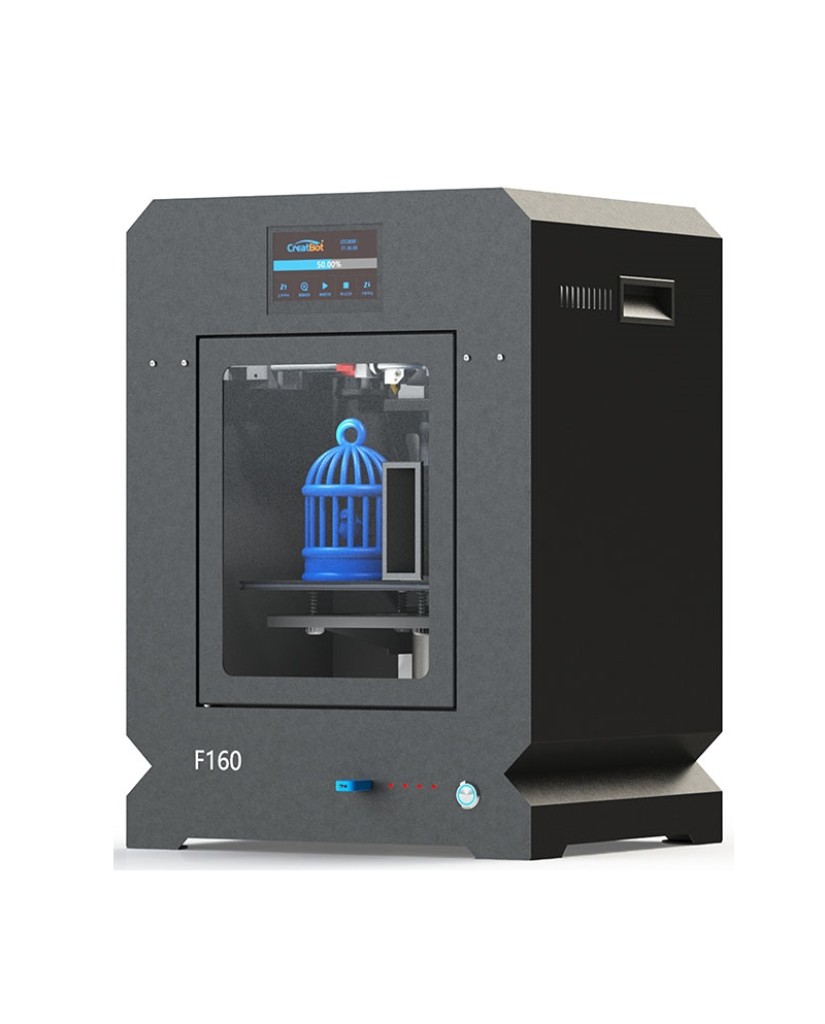

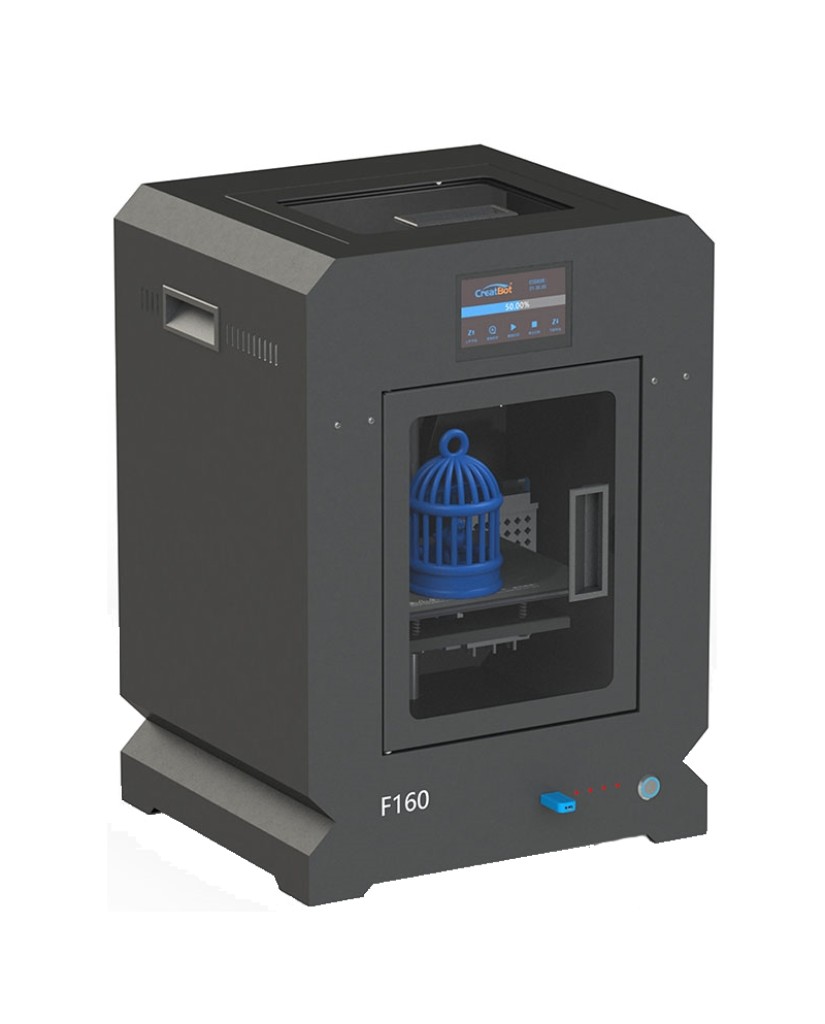

Creatbot F160 3D Printer

Creatbot F160 PEEK 3D Printer

The CreatBot F160 Desktop 3D printer can be used to additive manufacture objects out of high temperature filaments such as Nylon, PEEK or Ultem. Furthermore, you can process other materials which need temperatures up to 420°C.

Main Features:

• Build volume of 160 x 160 x 200 mm
• Max. Nozzle temperature: 420°C, Bed temperature: Up to 130°C
• Filament Compatibility: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, etc.
• High precision up to 0.04mm
• Stable durable metal chassis structure
• Fully enclosed high-temperature chamber
• Filament detection and outage restored
• Touch screen interface
• Buildtak Platform support

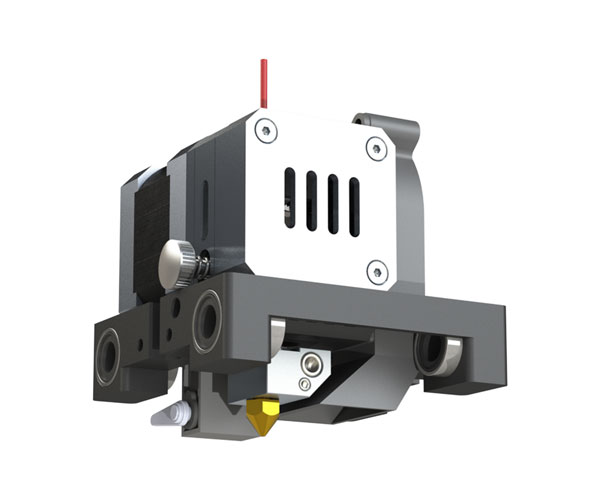

Support 420°C Hotend

We are the first one to publish 420°C high temperature nozzle to 3d printer market. This kind of nozzle allow to print with a variety of filaments. The nozzle height can also be micro adjusted. Normal nozzle support up to 260°C. High temperature 420°C Nozzle available as an option.

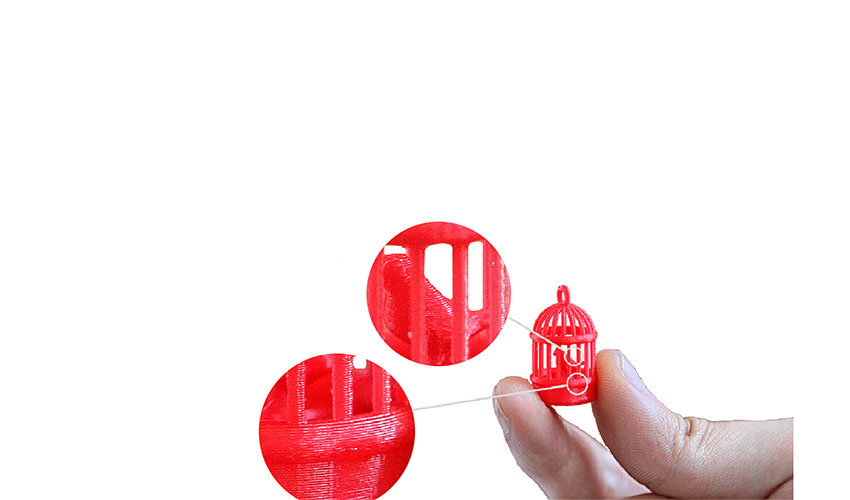

High Precision & High Speed

We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach high to 0.04mm,and it allows to extrude filament steady without block.

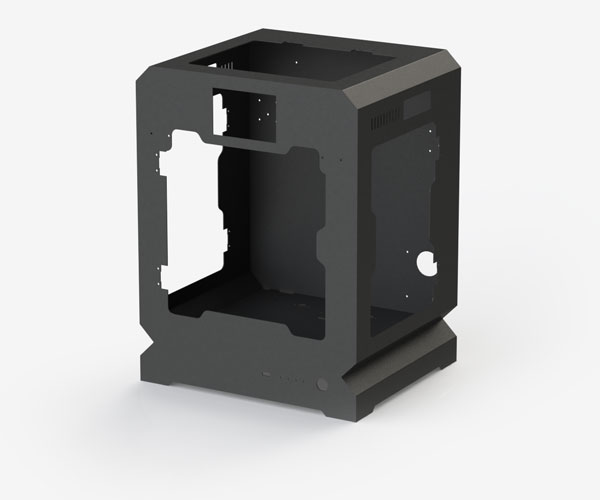

Stability

The whole-steel body not only ensure the stability when printing, but also extend the usage period greatly. Its optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.

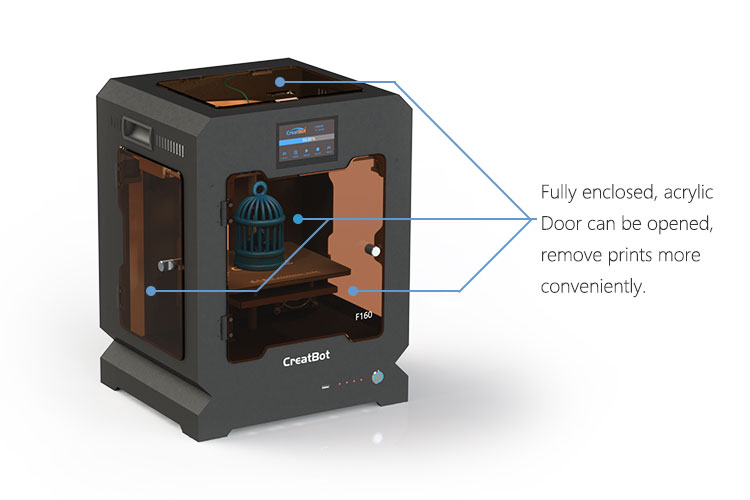

Fully Enclosed High-Temperature Chamber

Fully enclosed chamber can block all external interference and reduce noise. Hot chamber can provide constant room temperature so that model won’t deform when printing.

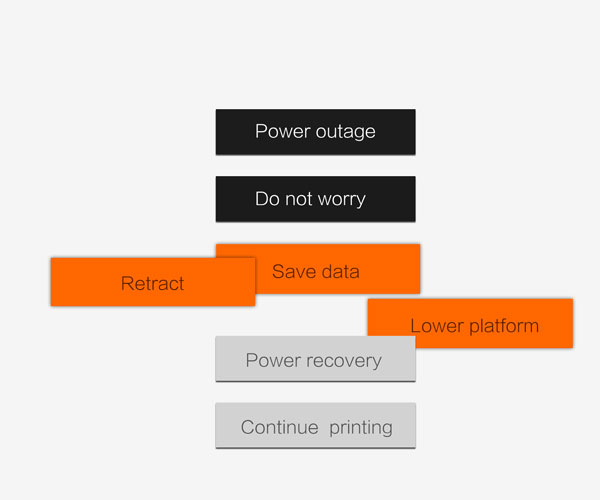

Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.The printer will avoid invalid printing by stoping print and warning when filament runs out.

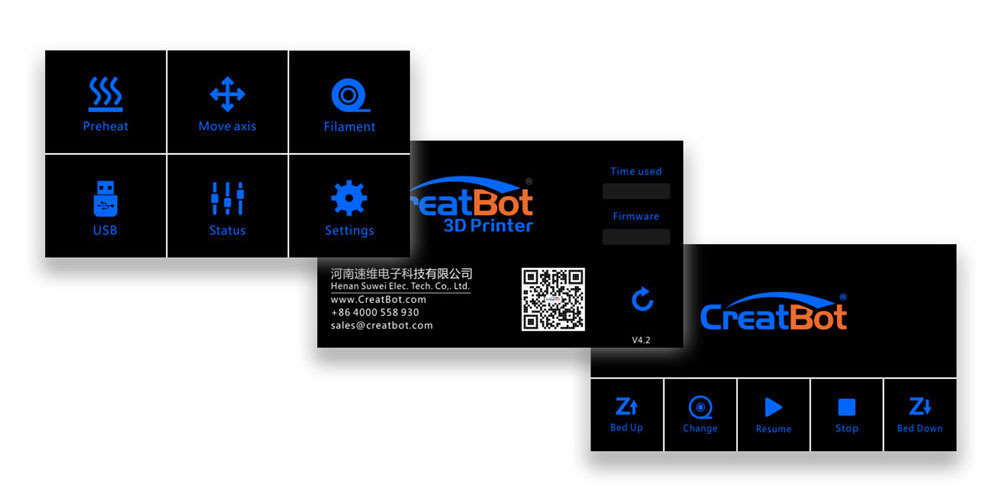

Touch Screen

The printer have all-English-menu touch screen which is easy operate and friendly use. One key to warm,one key to print as well as many other shortcut keys.

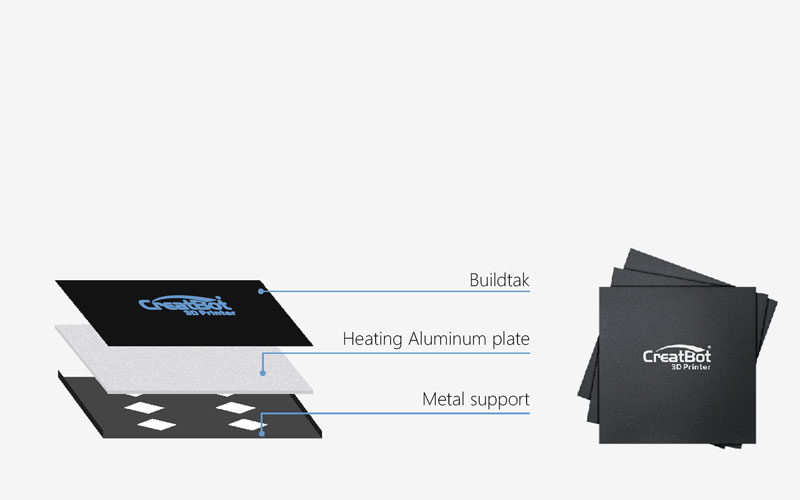

Efficiently Platform & 150°C Hotbed

The hotbed is made of heatable aluminium PCB, which can be heat up to 130°C fast. The platform is attached with 3d printing stickers buildtak. Printed object can be stick on the buildtak tightly and won’t get deformed.

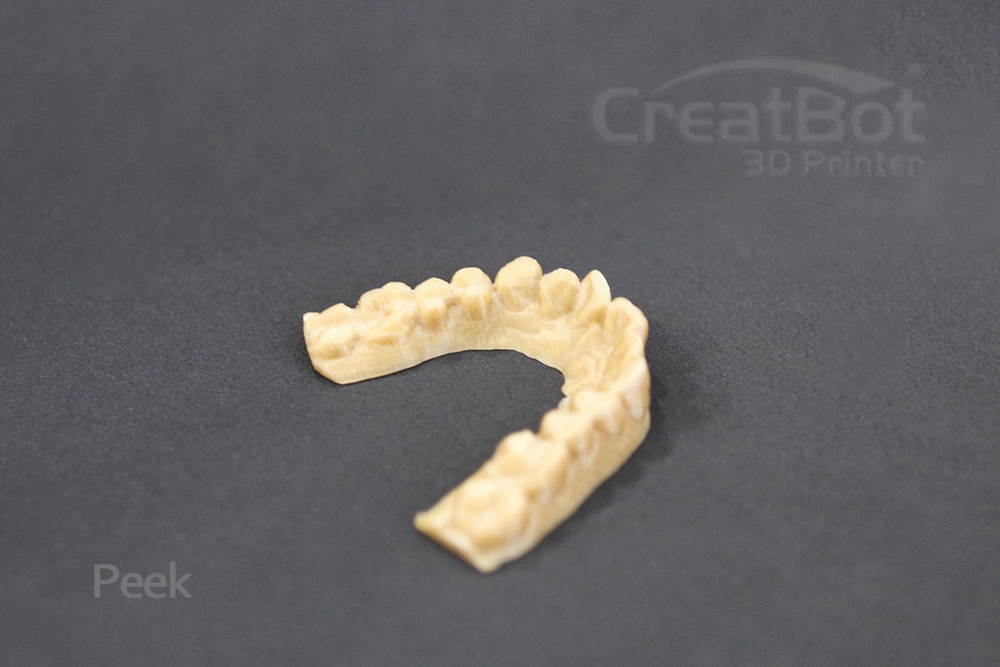

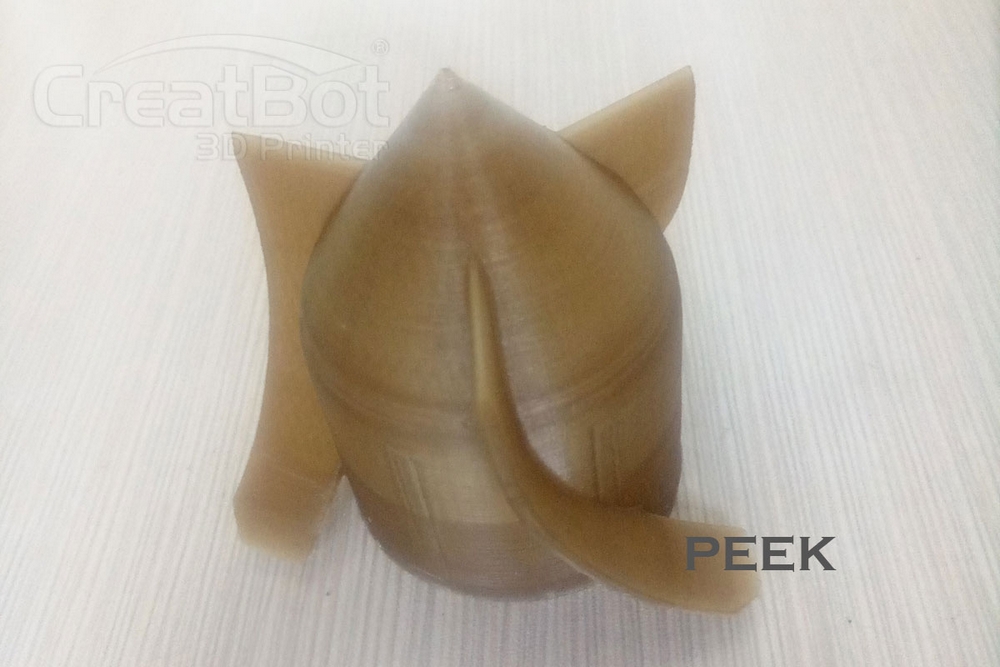

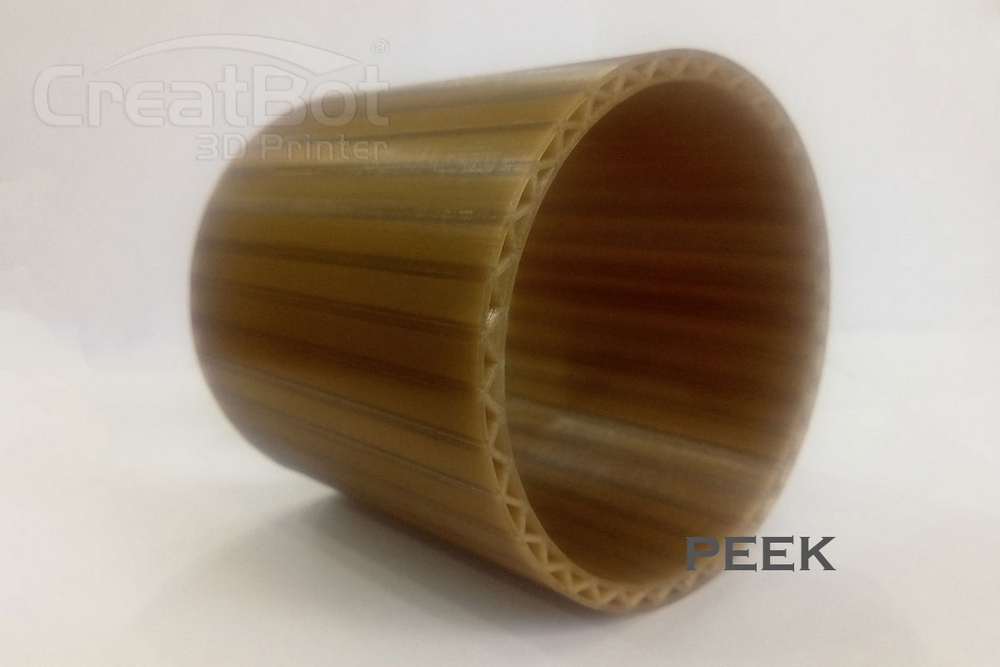

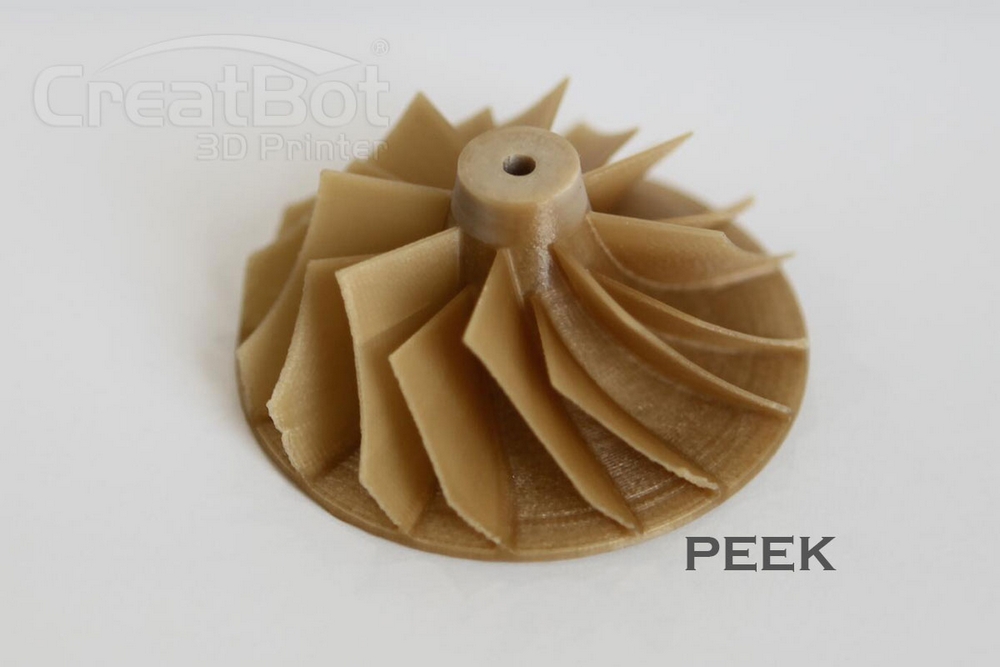

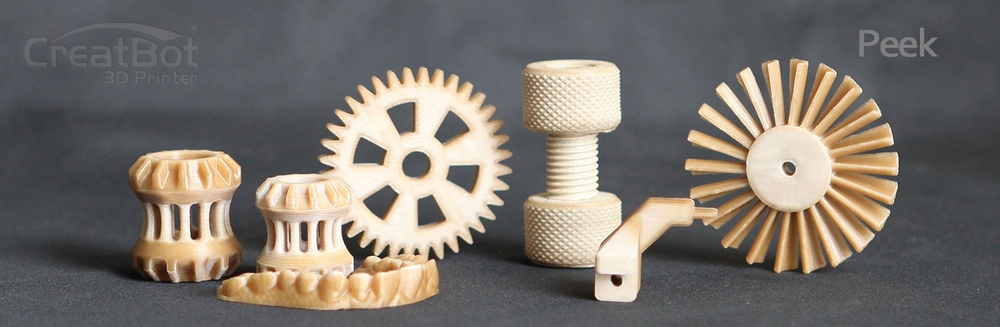

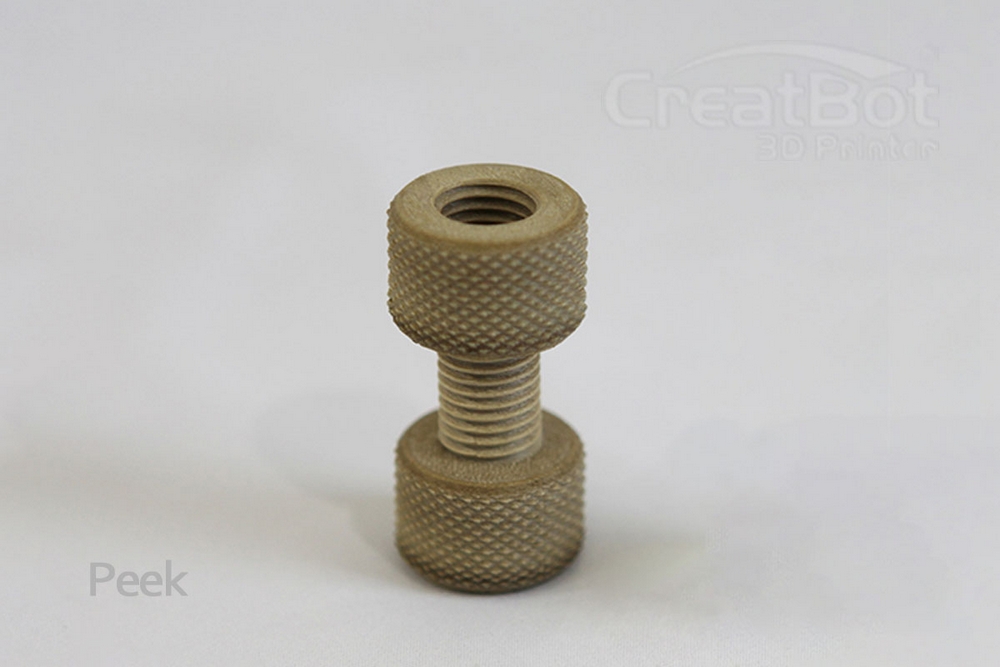

FILAMENT & APPLICATION

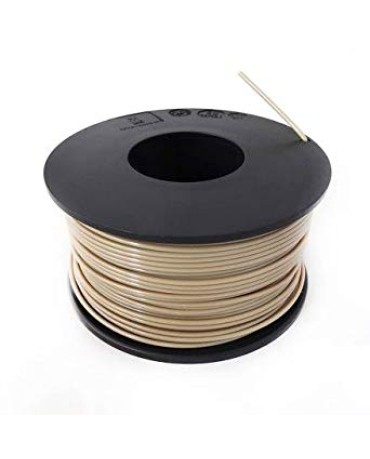

standard F160 are able to print PLA,ABS,Nylon,etc perfectly. The F160-PEEK version applied to 3D printing of PEEK. We supply high quality PEEK filament as well , which requires 420°C extrusion temperature. The material have features of high strength, high toughness, corrosion resistance and wear resistance. It can be used in aerospace, electronics, medical, machinery, automotive and other industries.

Tech Specs:
