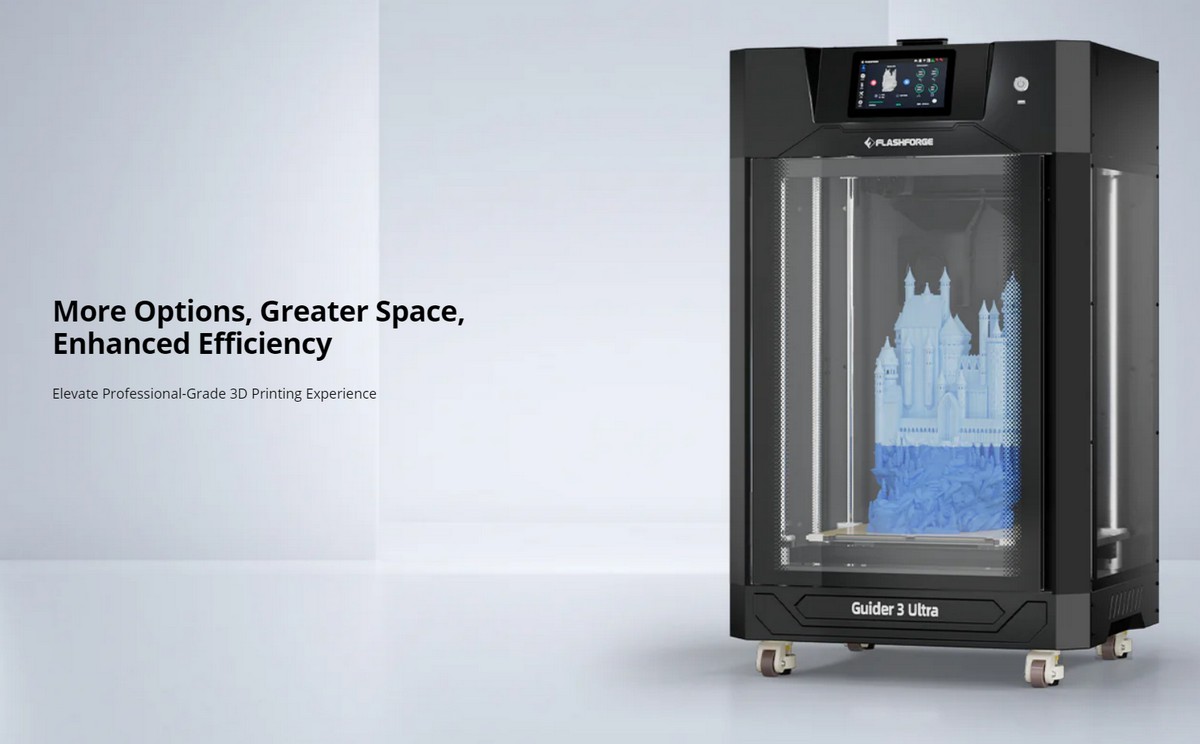

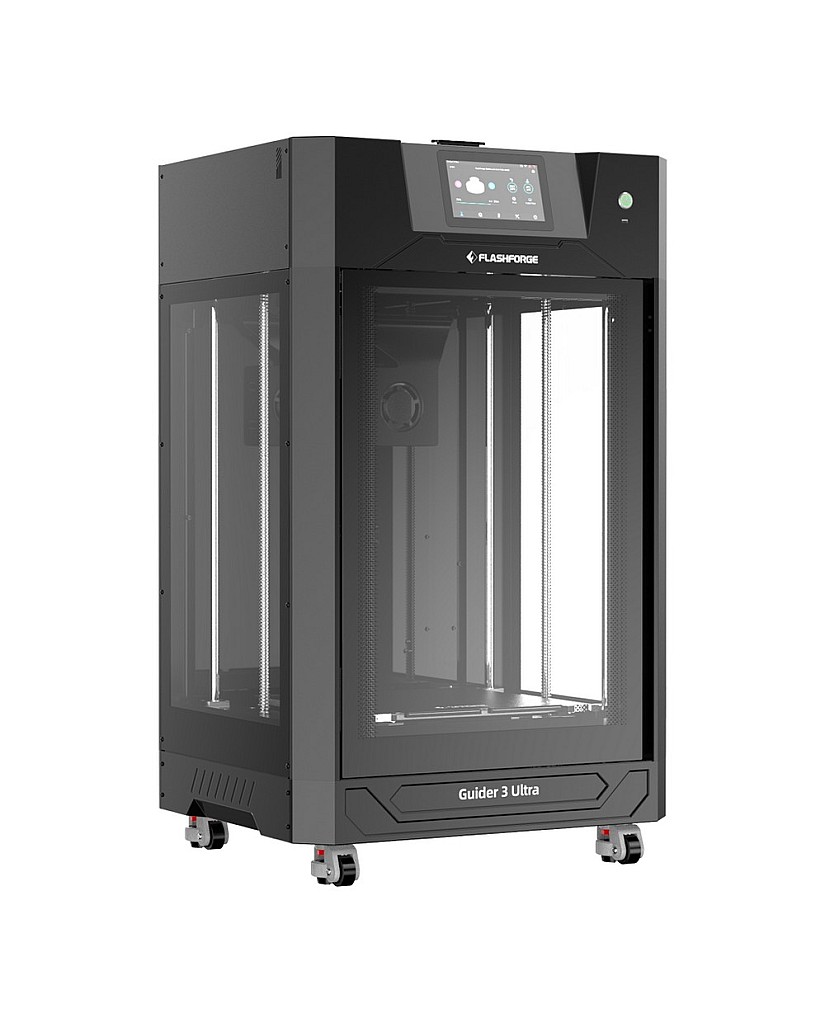

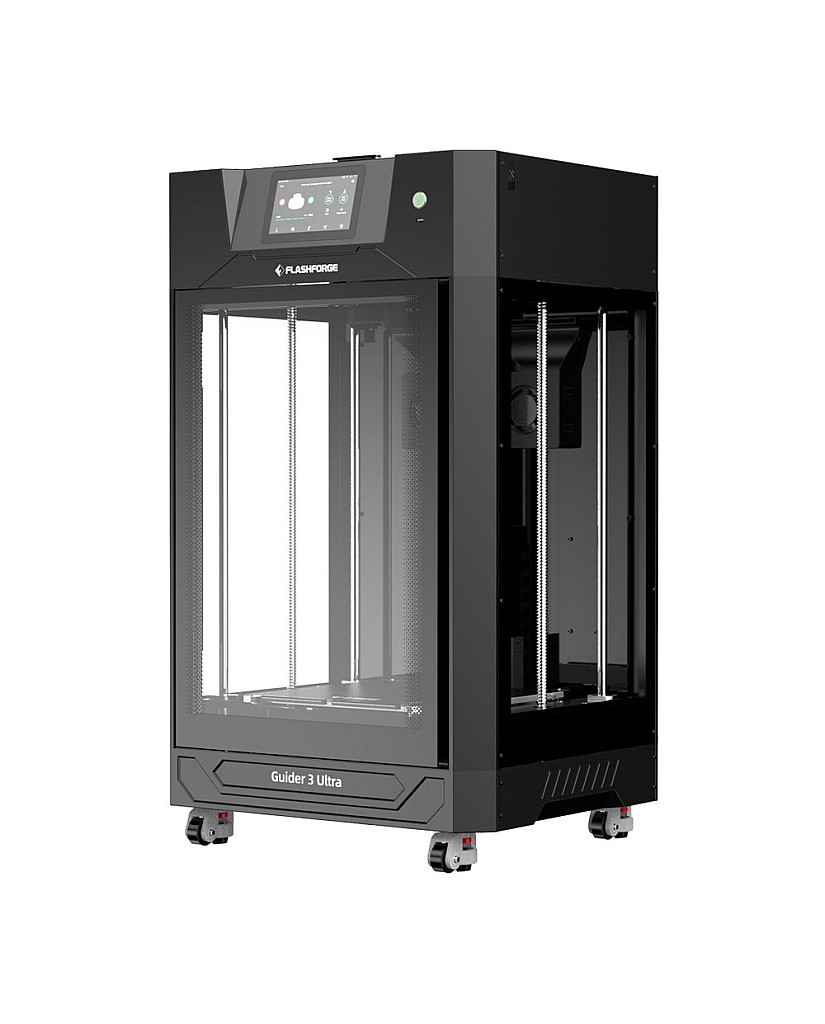

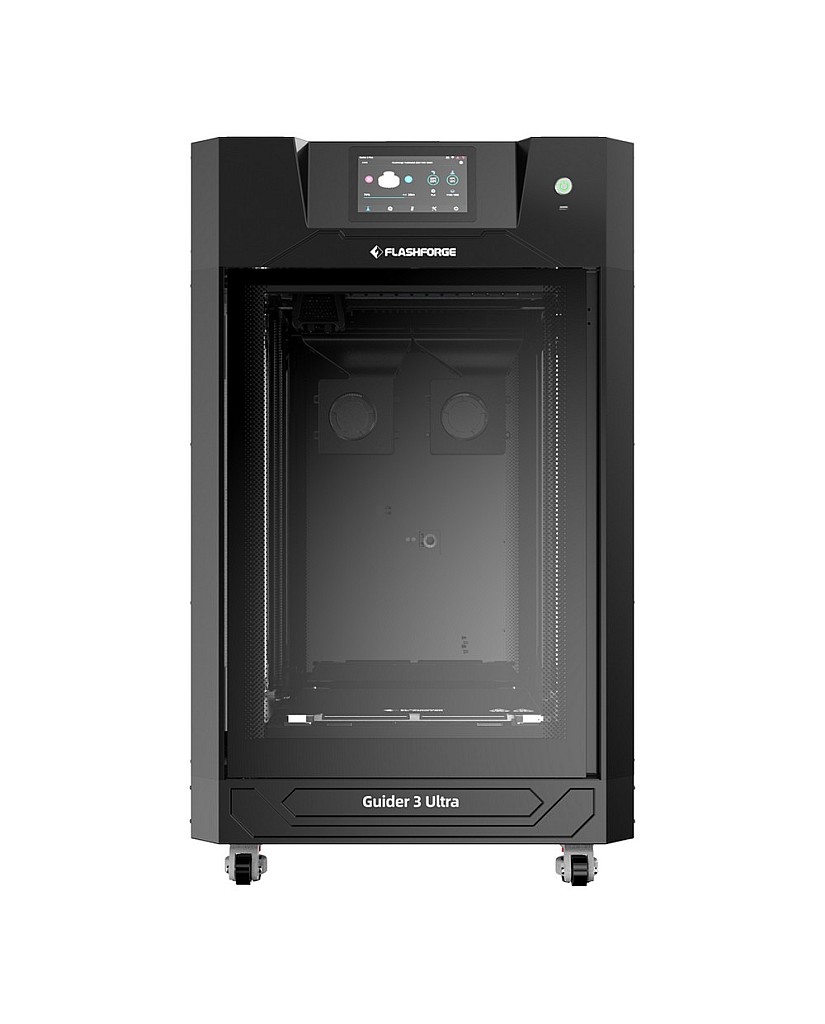

Flashforge Guider 3 Ultra 3D Printer

Flashforge Guider 3 Ultra 3D Printer

Main Features: ​

• The Flashforge Guider 3 Ultra, High-Speed 3D Printer w/ Dual Extruder & Ultra-Large Build Volume is a state-of-the-art device that boasts an ultra-fast algorithm and a lightweight yet stable structural design. This printer is designed to enhance active vibration compensation performance, ensuring continuous and stable high-speed operation. It is capable of rapidly forming complex models, making it a leader in high-efficiency manufacturing.

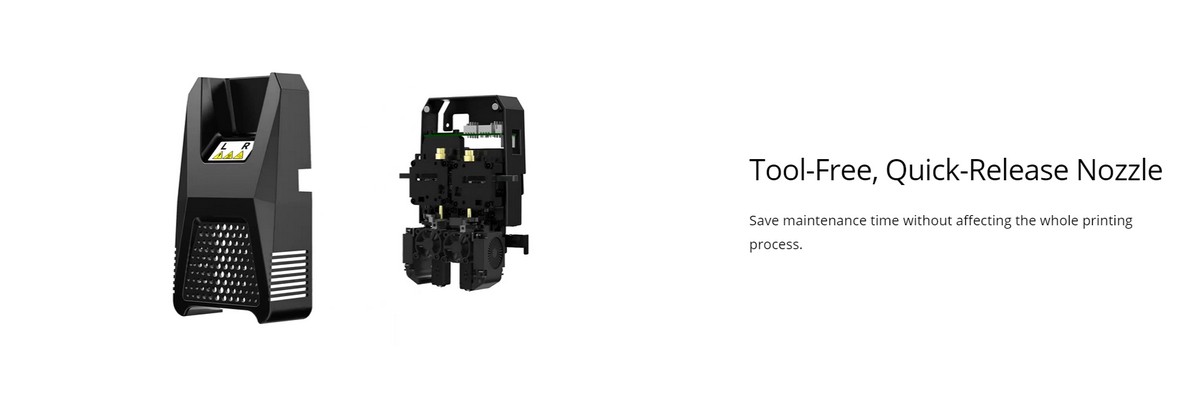

• The printer is user-friendly, featuring a tool-free design and a quick-release nozzle that can be detached in just three seconds. It also offers one-click printing and fully automatic leveling. The printer's speed is impressive, with a printing speed of 500 mm/s and an acceleration of 20000 mm/s².

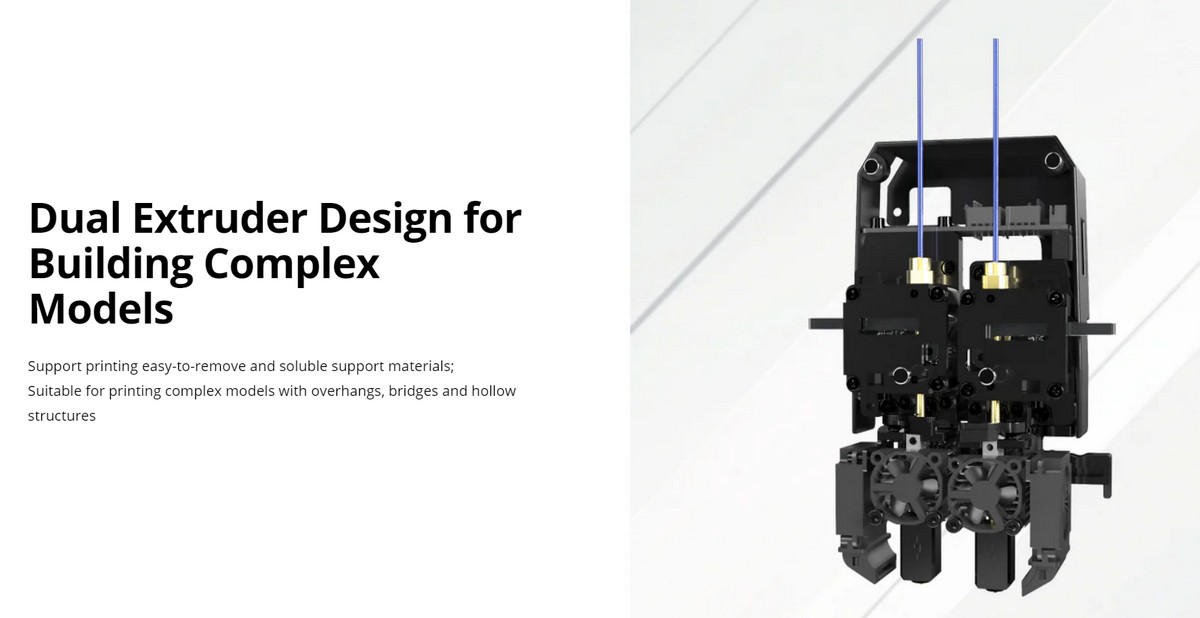

• The dual extruder design of the Flashforge Guider 3 Ultra allows for the construction of intricate models. Furthermore, it has an ultra-large build volume, with a maximum volume of 330 x 600 mm, making it ideal for high-speed and highly efficient production.

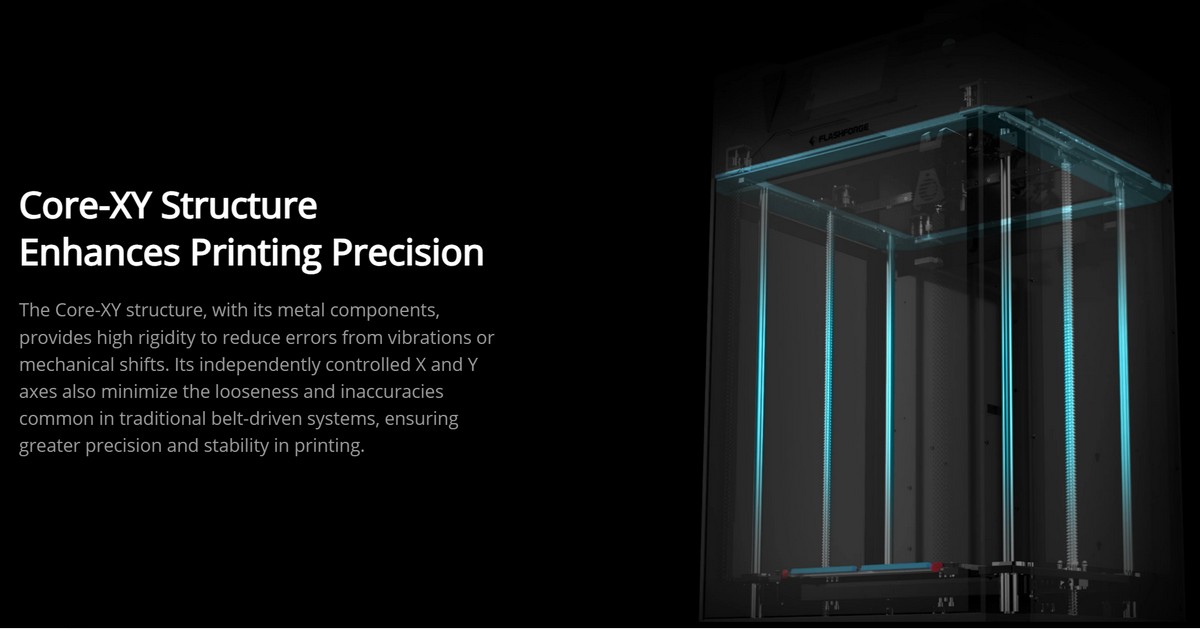

• With the new ultra-fast algorithm and lightweight and stable structural design, Guider 3 Ultra enhances its active vibration compensation performance, features continuous and stable high-speed operation, and realizes rapid integral forming of complex models, truly leading to high-efficiency manufacturing.
• Air Cooling System: The powerful dual-fan air-blowing cooling system can quickly cool down the filament extruded by the nozzle, and ensure that each layer of filament is fully cooled in the high-speed printing mode, offering higher molding accuracy.

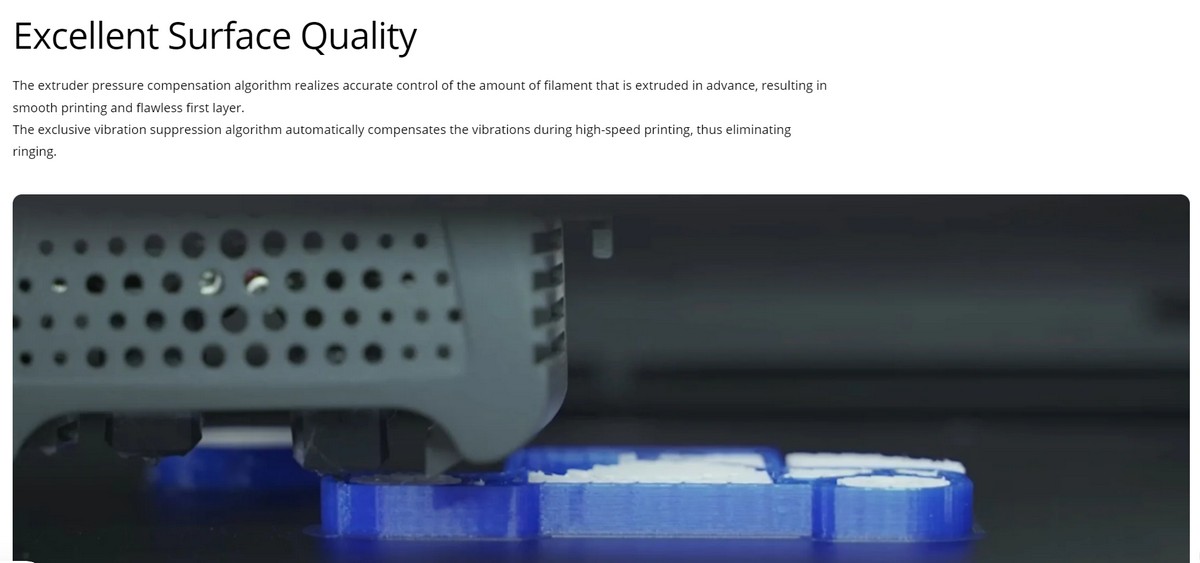

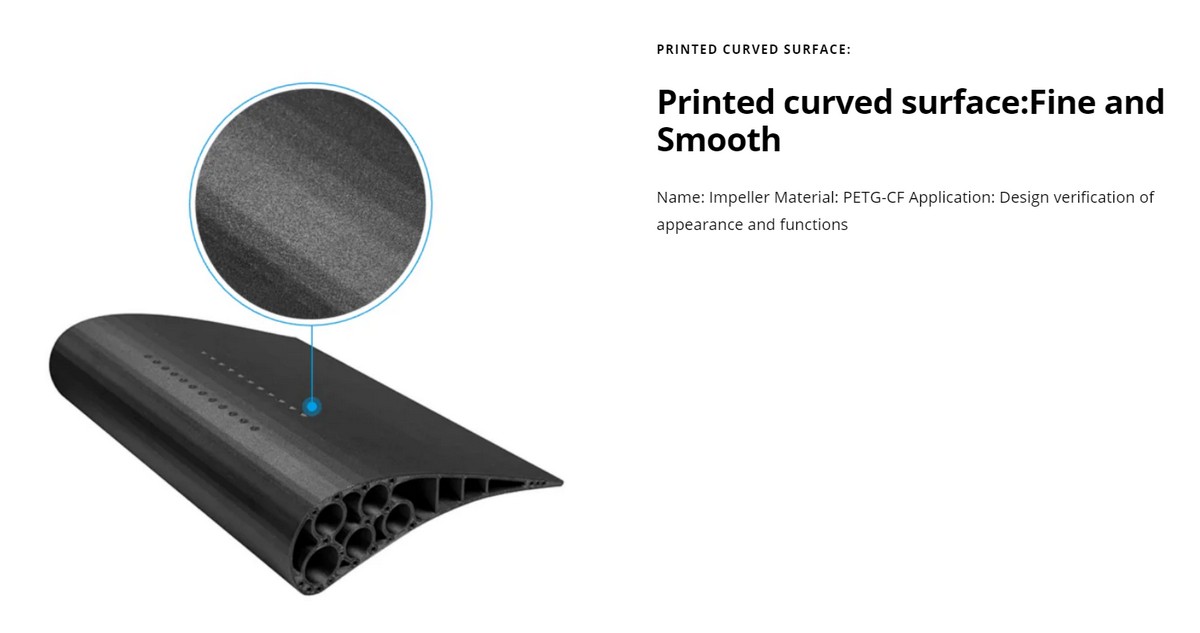

• Excellent Surface Quality: Equipment of outstanding performance, slicing software using intelligent path planning algorithm, and own-brand filaments developed under continuous innovation.

Specifications:

• Extruder Quantity: 2
• Positioning Accuracy: X/Y-axis 0.011 mm | Z-axis 0.0025 mm

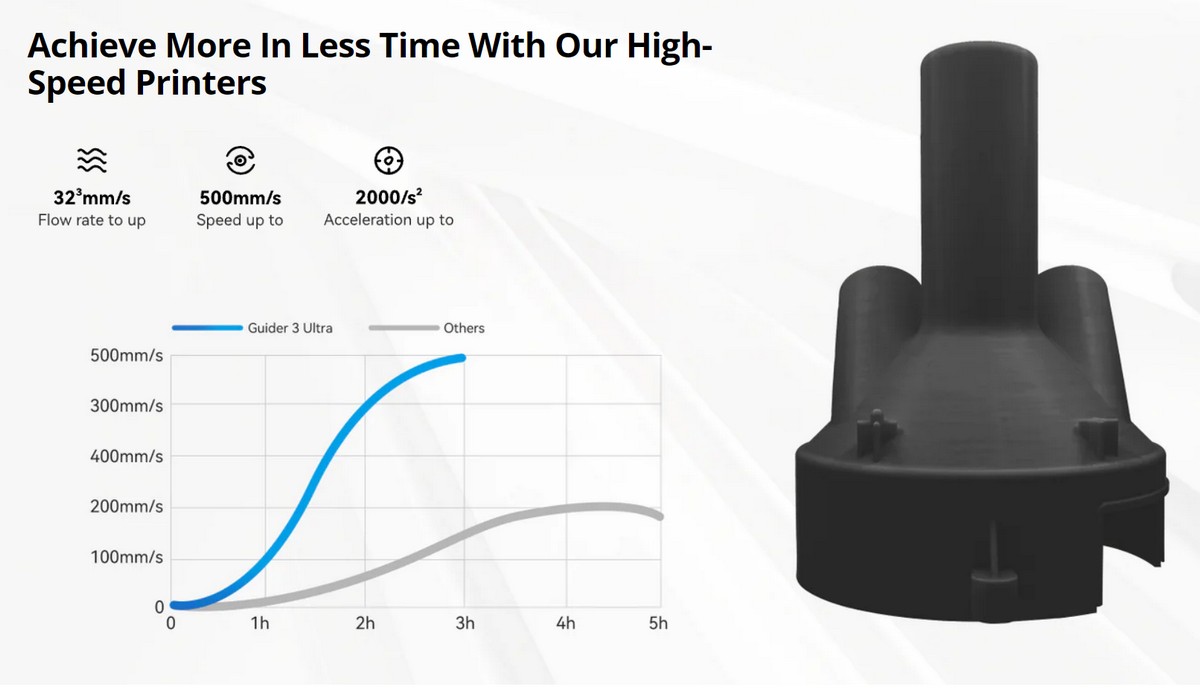

• Printing Speed: Max. 500 mm/s
• Printing Acceleration: 20000 mm/s²
• Nozzle Type: High-strength nozzle
• Maximum Extruder Temperature: 350 °C
• Maximum Platform Temperature: 120 °C
• Printing Bed: Flexible steel plate
• Supported Filament: PLA / PETG / ASA / ABS / PC / PA / PLA-CF / PETG-CF / PETG-GF / PA-CF / PA-GF

Power Supply

• Input: AC 100 - 240 V
• Output: 50-60Hz, 850W MAX

Software

• Slicing Software: FlashPrint
• Compatible Operating System: Windows XP / Vista / 7 / 8 / 10 / Mac OS
• Input File Format: 3MF/ STL / OBJ / FPP / BMP / PNG / JPG / JPEG File
• Output File Format: GX / G / gcode
• Compatible Slicing Software: Slic3r / Cura (Need to set up)

Other Functions

• Printing Connection: U Disk / Ethernet / Wi-Fi
• Quick-release Extruder: Yes
• Fully-enclosed Design: Yes

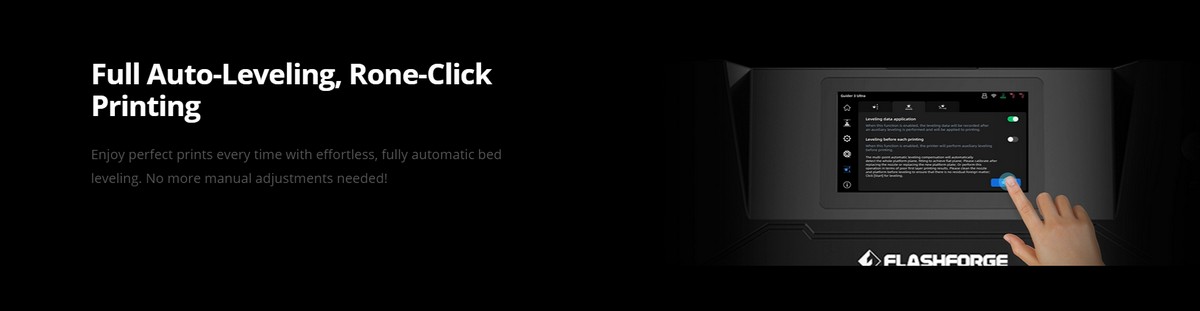

• Automatic Leveling: Yes

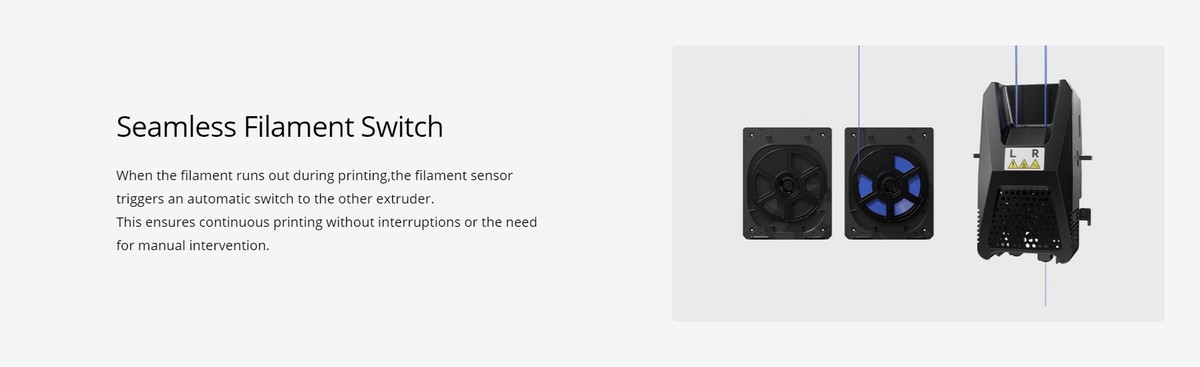

• Filament Run-out Reminder: Yes
• Replaceable Build Plate: Yes
• Ultra-silent Design: Yes
• Power Loss Recovery: Yes
• Remote Video Monitoring: Yes
• Wi-Fi: Yes
• Ethernet Port: Yes
• USB Port: Yes
• Air Filter Net: Yes

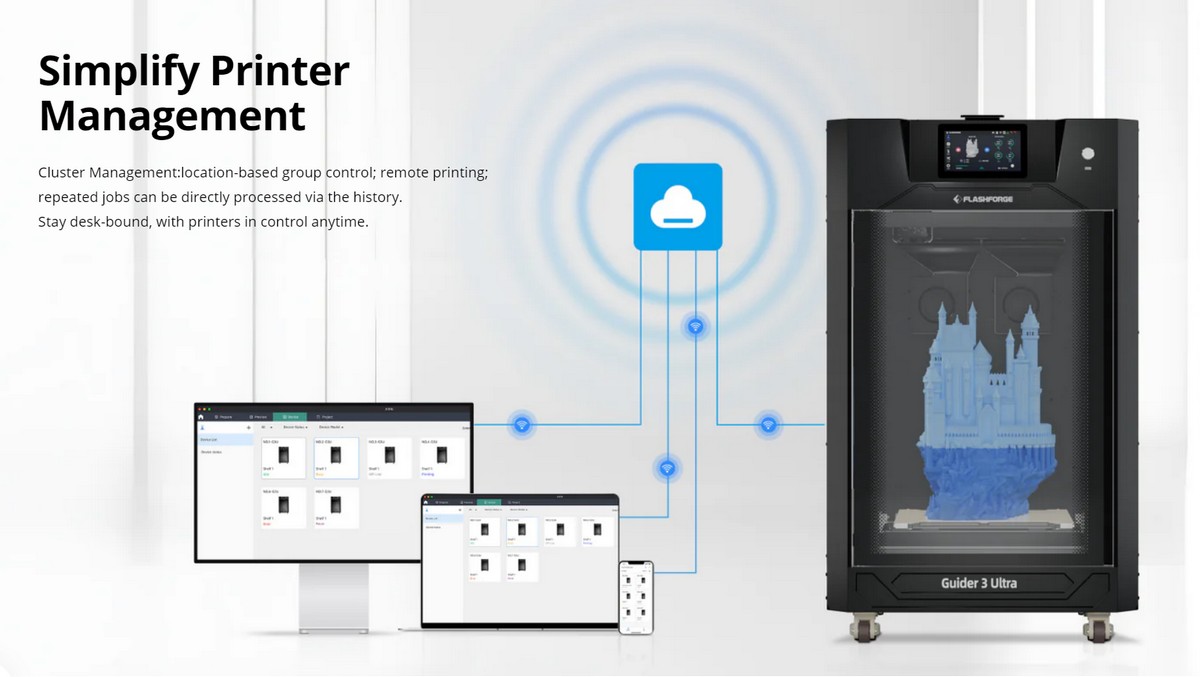

• Cloud Platform: Yes
