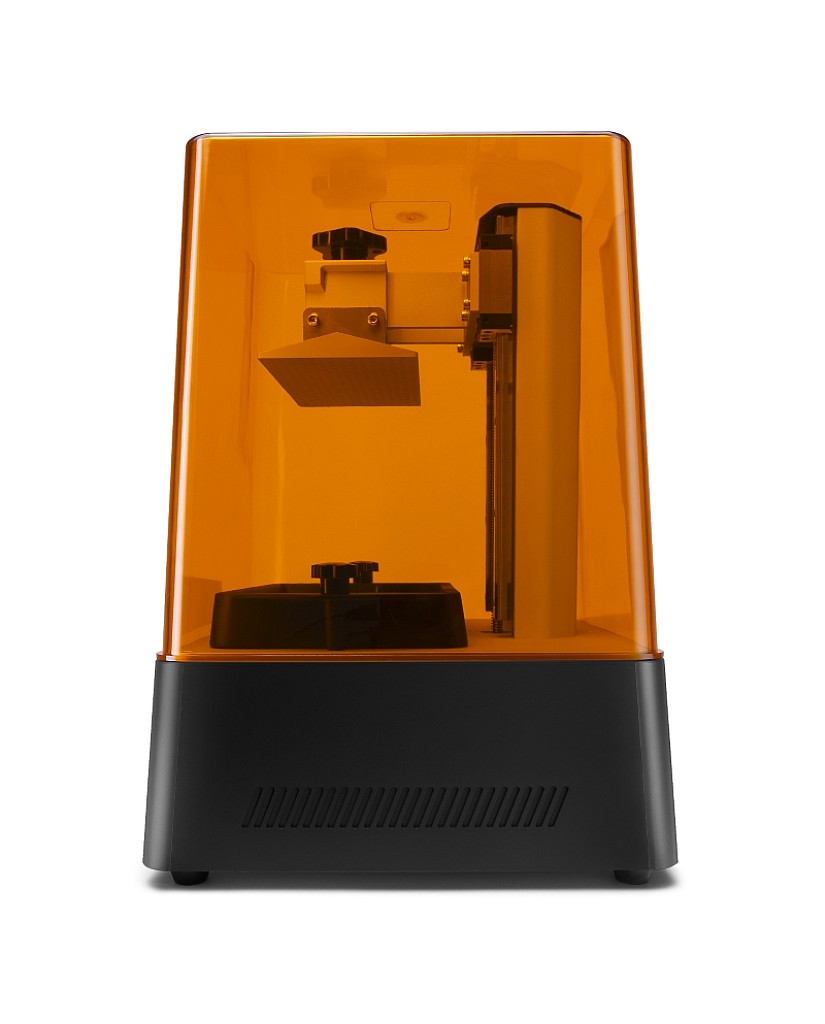

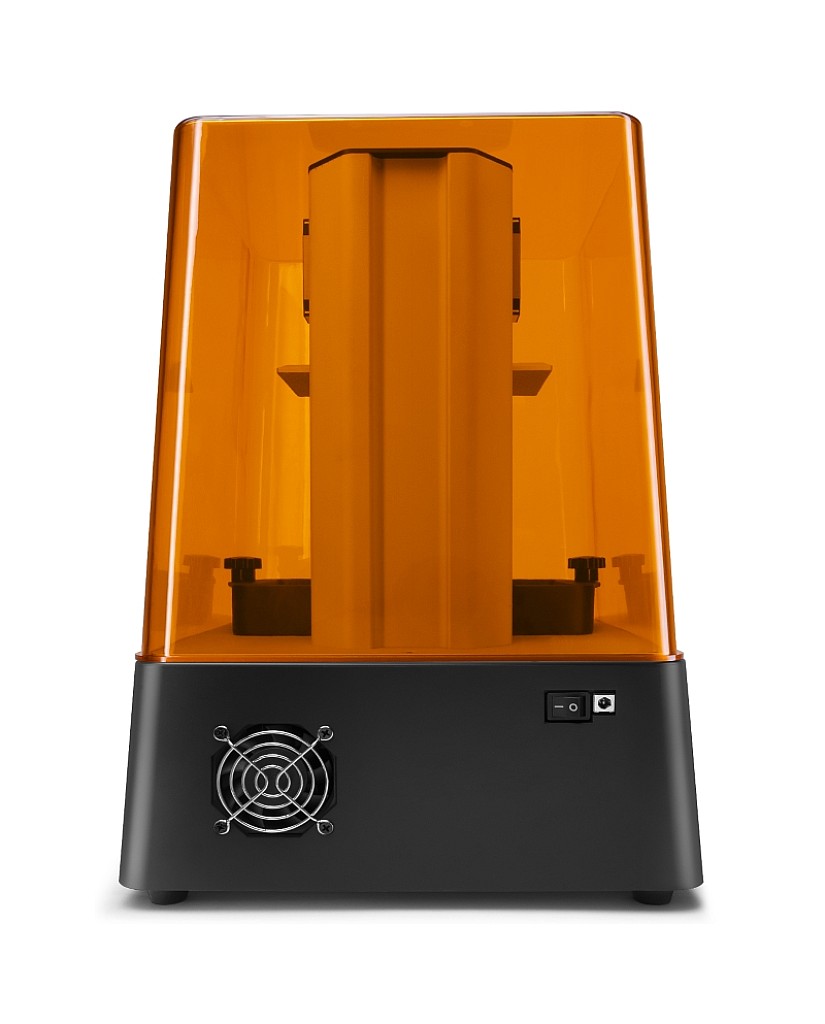

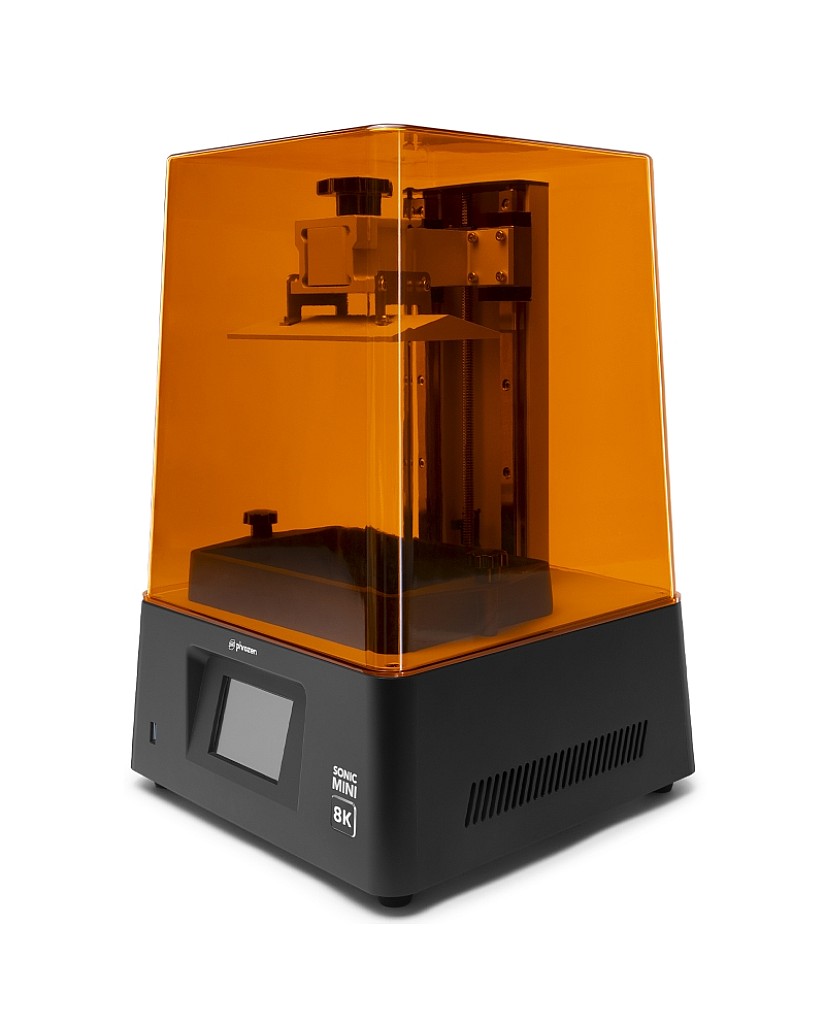

The first & only 3D printer to create mind-blowing details at 22 μm. Sonic Mini 8K prints extremely realistic textures, pores, and wrinkles even beyond delicately handcrafted pieces created by professional sculptors.
Phrozen 8K LCD technology reduces layer lines up to 50%, enabling you to create sleek and flawless miniatures, jewelry, and more.

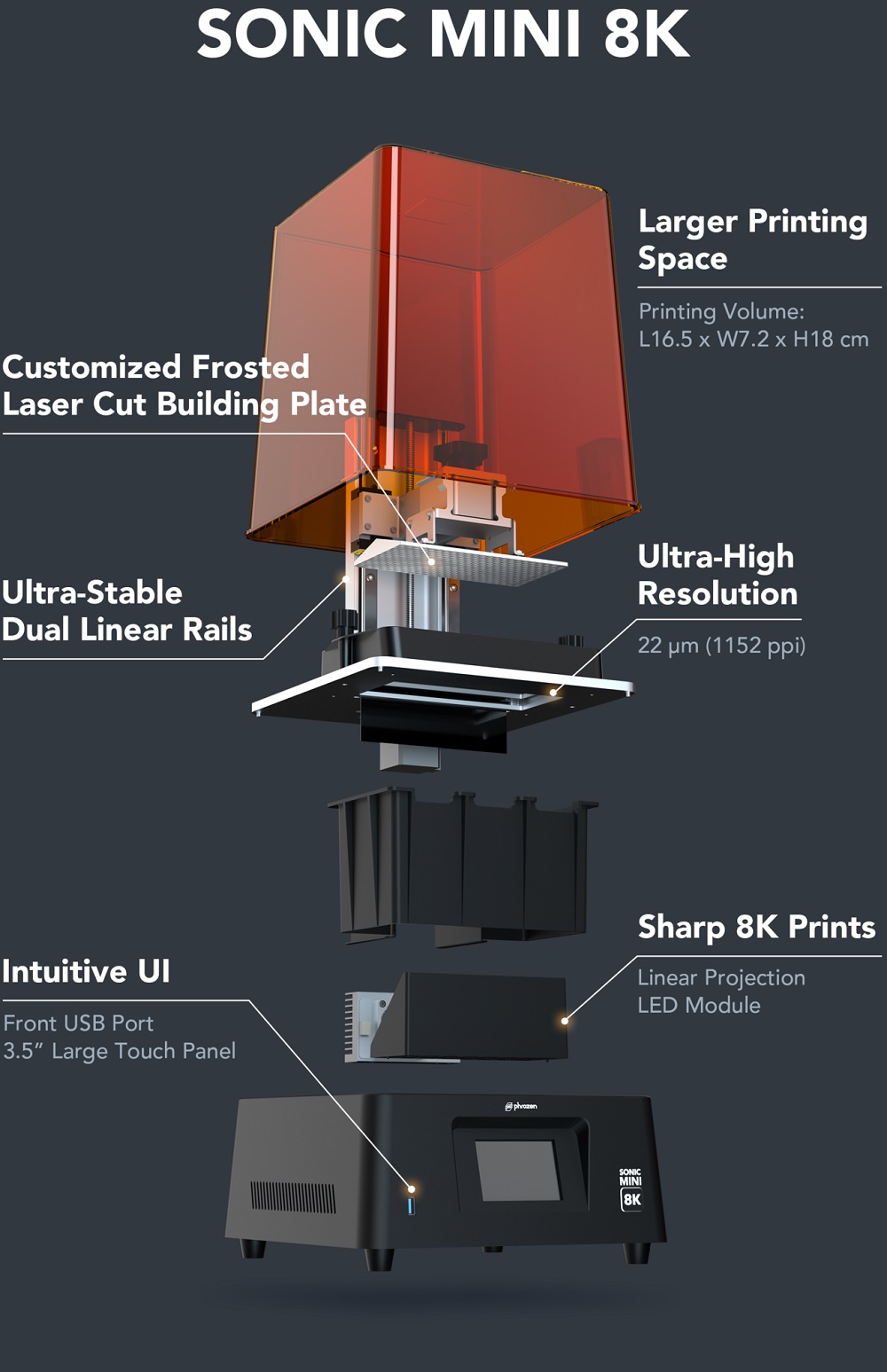

Main Features:
The dual linear rails everyone’s been asking for. With the ultra-stable dual linear rails, Sonic Mini 8K is guaranteed to create durable & high-quality 3D prints.

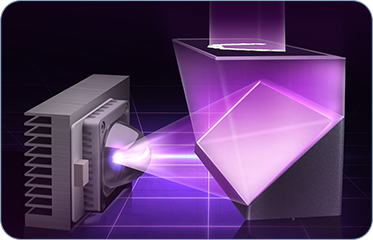

The Linear Projection LED Module effectively extends the optical path length, enhancing light uniformity by over 90% to create sharp & crisp 3D models.

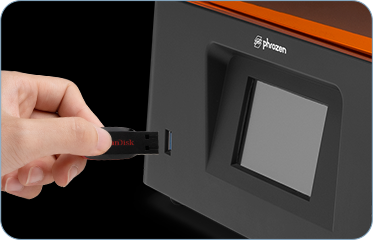

Simply plug in the USB at the front of your Sonic Mini 8K, toggle through the 3.5” touch panel, and you’re ready to go.

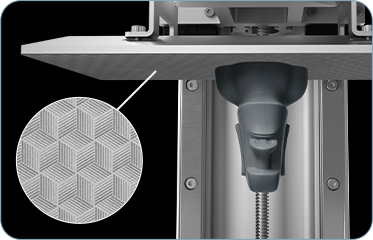

The all-new frosted laser cut building plate allows your 3D models to stick firmly onto the building plate, drastically improving your 3D printing success rate.
| Product Condition | |
| Item Condition | New |

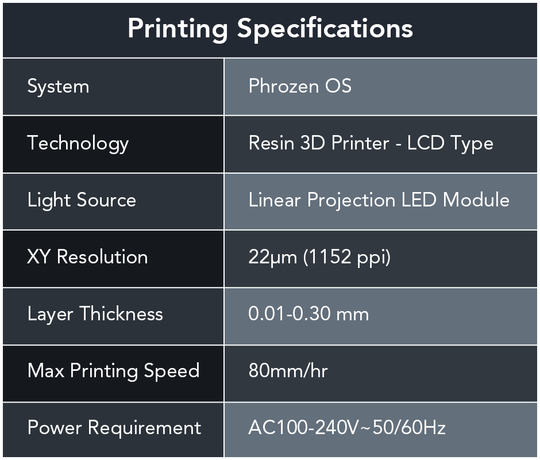

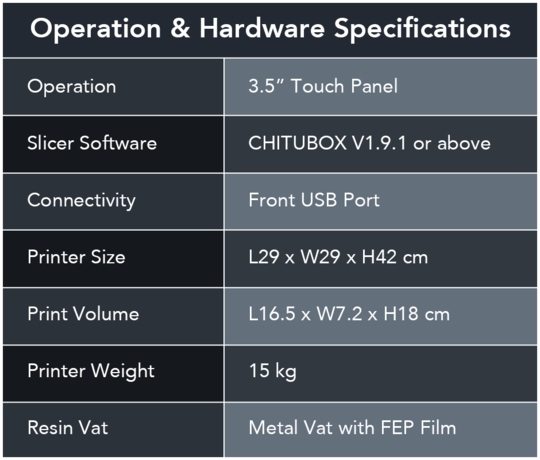

| Technical Specifications | |
| Layer Height | 0.01 – 0.3mm |
| Printing Specifications | |
| X Y Axis Position Accuracy | 22 microns (7680 × 4320 pixels) |
| Z Axis Position Accuracy | 10 – 100 µm |
| Print size ( X Y Z ) | 165 x 72 x 180 mm |
| Print Speed | 80mm/hr (Depends on resin used and layer height) |
| Mechanical Specifications | |
| Print Plate (Build Platform) | Metal – Frosted laser cut |
| Software Specifications | |
| 3D Printing Software | Chitubox V1.9.1 or higher |
| Operating System | Phrozen OS |
| Electrical Specifications | |
| Light Source | Linear Projection LED Module |
| Power Requirements | LED Power: 40W Power Input :100-240 VAC – 50/60 HZ |
| Connectivity (Interface) | Ethernet, WiFi |
| Electronics Specifications | |
| Display | 7.1″ Mono 8K LCD screen |
| Z Axis Drive | Metal – Ultra stable dual linear rails |
| Shipping specifications | |
| Machine weight | 15 Kg |
| Machine Dimensions | 29 * 29 * 42 cm |
